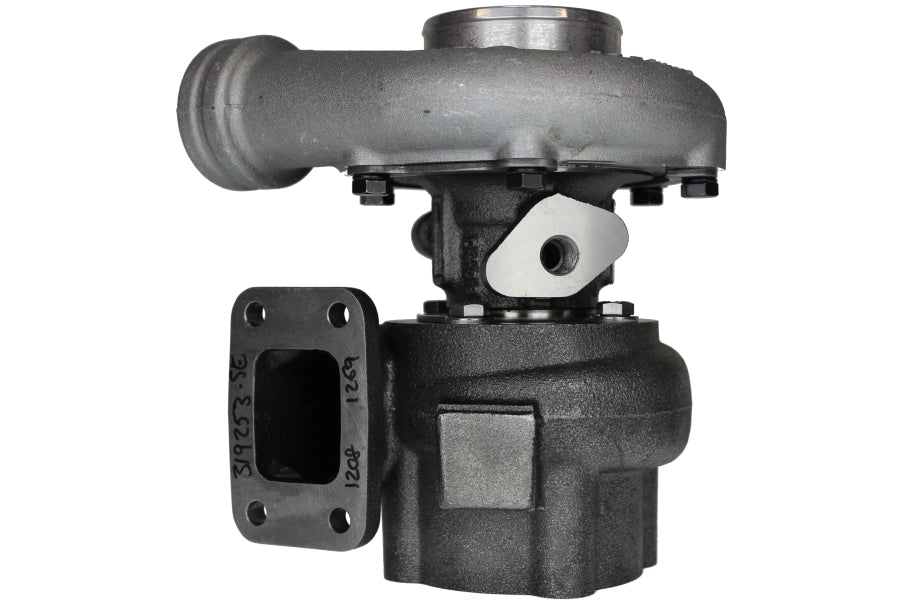

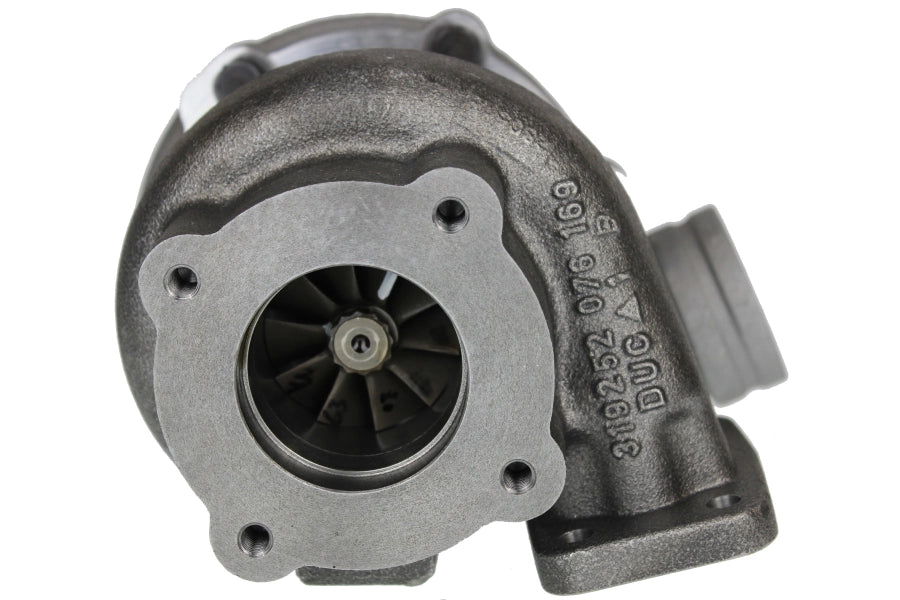

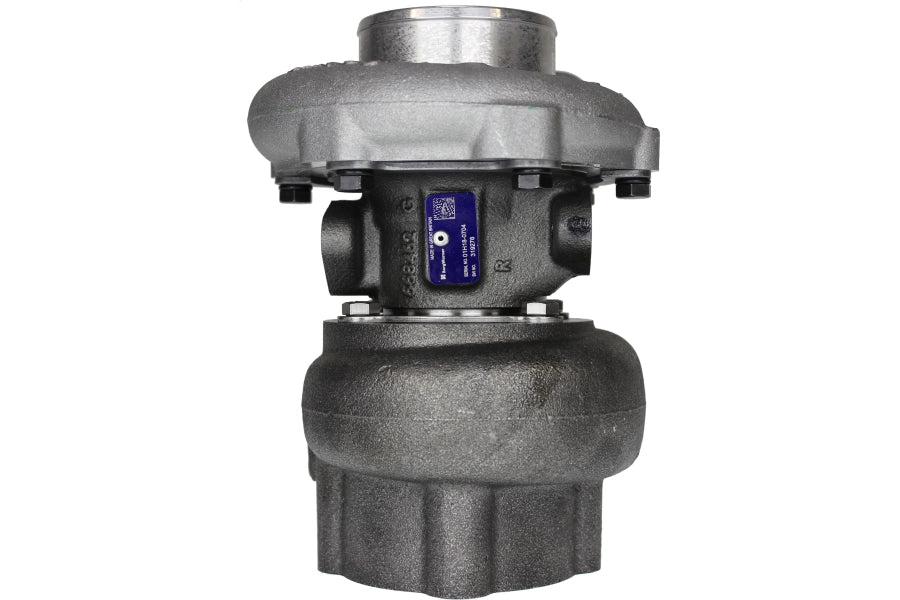

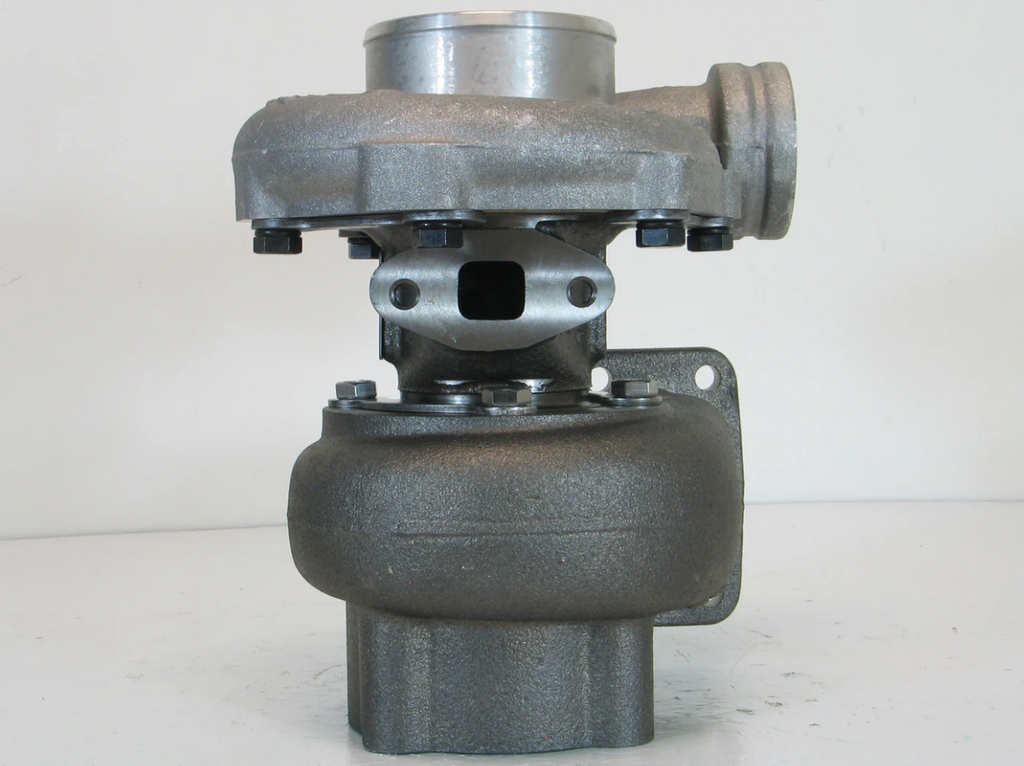

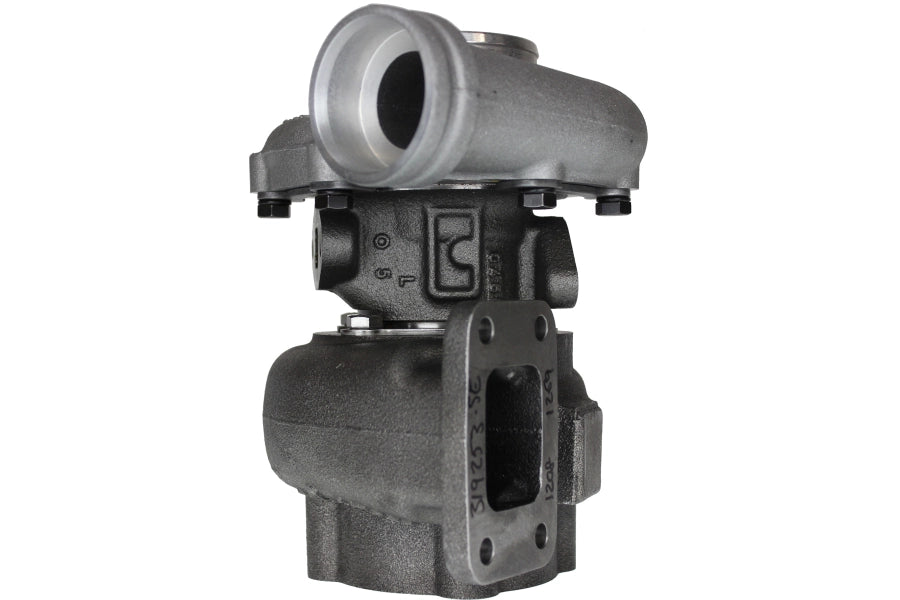

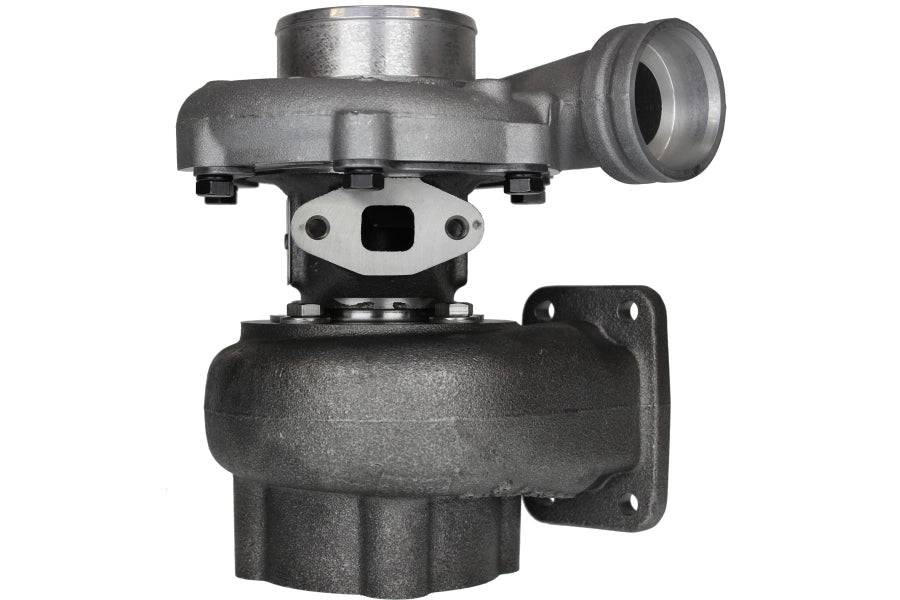

Turbolader SW1319278 | 12009900013 | 12009880013 04259311 l 04259311KZ l 4259311KZ l 24426737 Schwitzer Deutz Volvo Penta
Geschikt voor:
Diverse voertuigen - zie onderdeelnummers voor compatibiliteit
Specificaties:
Motorcodes:
Onderdeelnummers:
SW1319278, 12009900013, 12009880013, 04259311, 4259311KZ, BF4M1013C, 04259311KZ, 24426737, 04282423, 03051130, IVECO 4259311, VOLVO 24426737, VOLVO 3802191, DEUTZ 4259311, DEUTZ 3051130, DEUTZ 04259311KZ, 12009800013, 12009880013, 12009900013, 1200-988-0013, 1200-970-0013, 319212, 319278, 12009700013, 1200-990-0013, 1200-980-0013
| Part Number |
319278 |
| Previous versions |
319212 |
| OE number |
04259311, 04259311KZ, 4259311KZ, 24426737 |
| Year |
2002-11 |
| Description |
Generator |
| Turbo Model |
S200-64H12ALWM/0.76WJ2 |
| Manufacturer Part number |
316724, 313935, 316701, 313937, 316710, 313940, 316731, 314443 |
| CHRA |
319279 (300200003) |
| Engine Model |
BF4M1013C, BF4M1013E |
| Displacement |
4.76L, 4760 ccm |
| KW |
141/145/192/197 |
| Rpm |
2300 |
| Fuel |
Diesel |
| Angle α (compressor housing) |
307º |
| Angle β (turbine housing) |
243º |
| Bearing housing |
318912 (318330)(303040004) |
| Turbine Wheel |
319249 |
| Comp. Wheel |
318077 (Ind. 42.77 mm, Exd. 63.55 mm, 7+7 Blades)(302040001) |
| Back plate |
167744 (1253200300)(304200001) |
| Heat shield Number |
167997 (306010011) |
| Repair Kit |
318383 (1253200750)(309200001) |
| Turbine Housing |
319253 |
| Compressor Cover |
319248 |
| Gasket (oil inlet) |
311698 |
| Gasket (turbine outlet) |
311496 (210021, 148062, 311496) $3.32 |
| Manufacturer |
Borg Warner - 3K - Schwitzer, BWTS UK |
