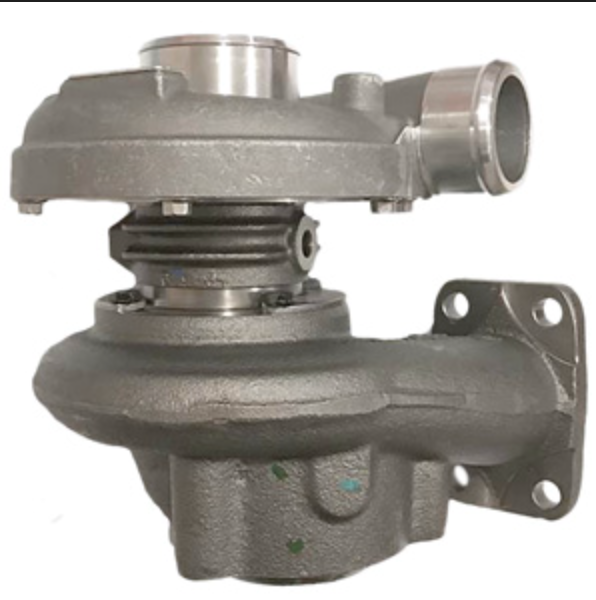

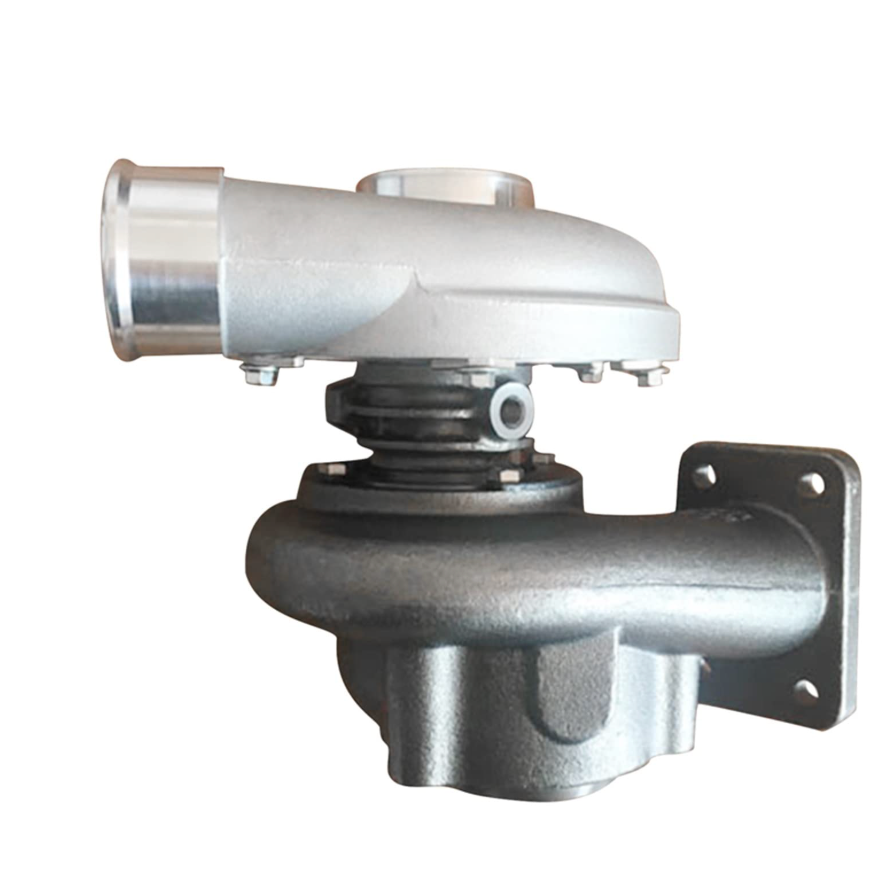

Turbolader 754127-5004S 754127-4 5586986 7541275004S 2674A432 1104A-44T, Genset Vista 4 Perkins Garrett
Geschikt voor:
Diverse voertuigen - zie onderdeelnummers voor compatibiliteit
Specificaties:
Motorcodes:
Zie productspecificaties
Onderdeelnummers:
754127-5004S, 754127-5001S, 754127-0001, 754127-1, 880064-5001S, 880064-0001, 880064-1, 754127-5004S, 754127-0004, 754127-4, 2674A431, 2674431, 5586986, 558-6986, 1000000277, 131702, 2674A431, 754127-0001, 754127-0004, 754127-1, 754127-4, 754127-5001S, 754127-5004S, 880064-5001S
| Part Number |
754127-5003S |
| Previous Version |
754127-0003, 754127- |
| OE number |
2674A432 |
| Year |
2006- |
| Description |
Various Agricultural |
| CHRA |
433289-0185 (433289-5185S, 433289-0255)(1000010381, 1102025901) |
| Turbo Model |
GT2556 |
| Engine code |
1104A-44T, Vista 4 |
| Engine Manufacturer |
Perkins |
| Displacement |
4.4L, 4400 ccm, 4 Cylinders |
| Engine KW |
85/117 |
| RPM Max |
2400 |
| Fuel |
Diesel |
| Angle α (compressor housing) |
336° |
| Angle β (turbine housing) |
330° |
| Bearing Housing |
713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(Oil Cooling Type) |
| Turbine Wheel |
436563-0003 (436563-0010)(Ind. 54. mm, Exd. 45.72 mm, 12 Blades) |
| Comp. Wheel |
436336-0019 (436563-0002) (Ind. 39.7 mm, Exd. 56. mm, 6+6 Blades, Superback)(1102022408) |
| Back plate |
721086-0001 |
| Heat shield Number |
434686-0001 |
| Repair Kit |
732252-0001 (1102015756) |
| Turbine Housing |
711739-0036 |
| Compressor Cover |
721261-0027 |
| Actuator |
N/A |
| Settings Waste gate (pressure) |
0.970-1.030 bar |
| Settings Waste gate (lifting rod) |
1.00 mm |
| Gasket (turbine inlet) |
210658 (INOX Steel) |
| Gasket (oil outlet) |
210553 (210243)(Non Metallic) |
| Manufacturer |
Honeywell-Garrett |
